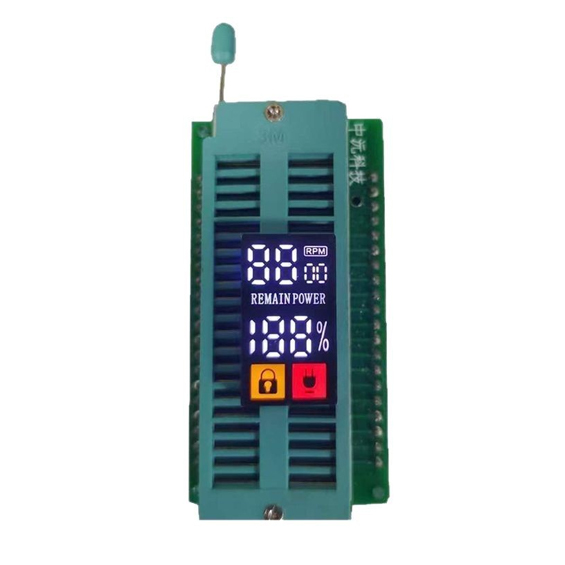

LED Digital Tubes Meet High Standards Required for Medical Electronics

2025-12-11 08:37:59

LED digital tubes Meet High Standards Required for Medical Electronics

Industry Background and Market Demand

The medical electronics sector demands components that combine precision, reliability, and durability. LED digital tubes, traditionally used in industrial displays and consumer electronics, are increasingly adopted in medical applications due to their energy efficiency, long lifespan, and adaptability. Regulatory frameworks such as ISO 13485 and IEC 60601-1 impose strict requirements on electronic components used in medical devices, pushing manufacturers to develop LED solutions that meet these benchmarks.

Hospitals, diagnostic equipment manufacturers, and portable medical device producers seek LED digital tubes capable of operating in high-stakes environments. Applications range from patient monitoring systems to surgical equipment displays, where readability under varying lighting conditions and resistance to sterilization chemicals are critical. The global market for medical-grade LEDs is projected to grow at a CAGR of 6.8% from 2023 to 2030, driven by advancements in minimally invasive surgical tools and wearable health monitors.

Core Technology and Key Features

Medical-grade LED digital tubes differ from commercial variants in three key aspects:

1. Optical Performance: High-brightness LEDs with uniform luminance ensure visibility in both low-light and high-ambient-light settings. Chromatic consistency (ΔE < 3) is maintained across batches to prevent misreading of critical data.

2. Material Resilience: Encapsulation materials must withstand repeated exposure to hydrogen peroxide, ethylene oxide, and UV sterilization without yellowing or delamination. Silicone-based polymers are often used instead of standard epoxy resins.

3. Electrical Safety: Reinforced insulation and low leakage current (<10 μA) prevent interference with sensitive biomedical sensors.

Structural Design and Manufacturing Process

A typical medical LED digital tube comprises:

- Substrate: Aluminum or ceramic PCBs for superior thermal management, reducing junction temperature fluctuations that could shorten lifespan.

- LED Chips: Bare-die GaN semiconductors wire-bonded directly to the substrate to minimize failure points.

- Optical Layer: Micro-textured light guides eliminate hotspots, achieving >160° viewing angles.

- Sealing: Hermetic sealing using laser welding or glass fritting prevents fluid ingress during sterilization.

Manufacturing involves:

1. Automated pick-and-place assembly under ISO Class 5 cleanroom conditions.

2. Accelerated life testing (85°C/85% RH for 1,000 hours) to simulate 5 years of clinical use.

3. 100% electroluminescence testing to detect microfractures in LED chips.

Critical Factors Affecting Performance

1. Thermal Management: A 10°C rise above rated temperature can halve LED lifespan. Active cooling or heat-spreading substrates are often integrated.

2. Drive Current Stability: Constant-current drivers with ±1% tolerance prevent brightness fluctuations.

3. Mechanical Shock Resistance: Vibration testing up to 15G ensures functionality in mobile medical carts.

Supplier Selection Criteria

Medical device manufacturers prioritize suppliers with:

- Certifications: ISO 13485, IEC 60601-1-2 (EMC), and RoHS/REACH compliance.

- Traceability: Full material disclosure and lot-level tracking for recalls.

- Design Support: Co-engineering capabilities for custom wavelength (e.g., 630nm for pulse oximetry displays).

Industry Challenges

1. Cost Pressures: Medical-grade LEDs cost 2–3x more than industrial versions due to stringent testing.

2. Supply Chain Gaps: Specialty silicones and ceramic substrates face allocation issues during demand surges.

3. Legacy System Integration: Retrofitting older medical devices requires compatible pinouts and voltage ranges.

Application Case Studies

1. Ventilator Displays: A Tier 1 ventilator manufacturer reduced field failures by 40% after switching to LED tubes with IP54-rated seals.

2. Surgical Microscopes: Digital tubes with 20,000:1 contrast ratio enable precise depth perception during microsurgeries.

3. Handheld Ultrasound: Low-power (<50mW) variants extend battery life by 30% in portable units.

Emerging Trends

1. Flexible Hybrid Electronics: Stretchable LED arrays for wearable patient monitors.

2. UV-C Disinfection: 275nm LEDs integrated into tube surfaces for continuous sterilization.

3. AI-Optimized Optics: Machine learning-driven light distribution tuning for specific surgical scenarios.

FAQ

Q: Can standard LED tubes be retrofitted into medical devices?

A: No. Medical versions require additional validation for biocompatibility, EMC, and sterilization resistance.

Q: How does chromatic stability impact medical use?

A: A 5% shift in blue wavelength could alter the perceived oxygen saturation value on a pulse oximeter by 2%.

Q: What’s the typical lead time for custom medical LED orders?

A: 12–16 weeks due to extended reliability testing and regulatory documentation.

The convergence of optoelectronic innovation and medical safety standards positions LED digital tubes as indispensable components in next-generation healthcare technology. Manufacturers investing in materials science and precision engineering will lead this high-value niche.
